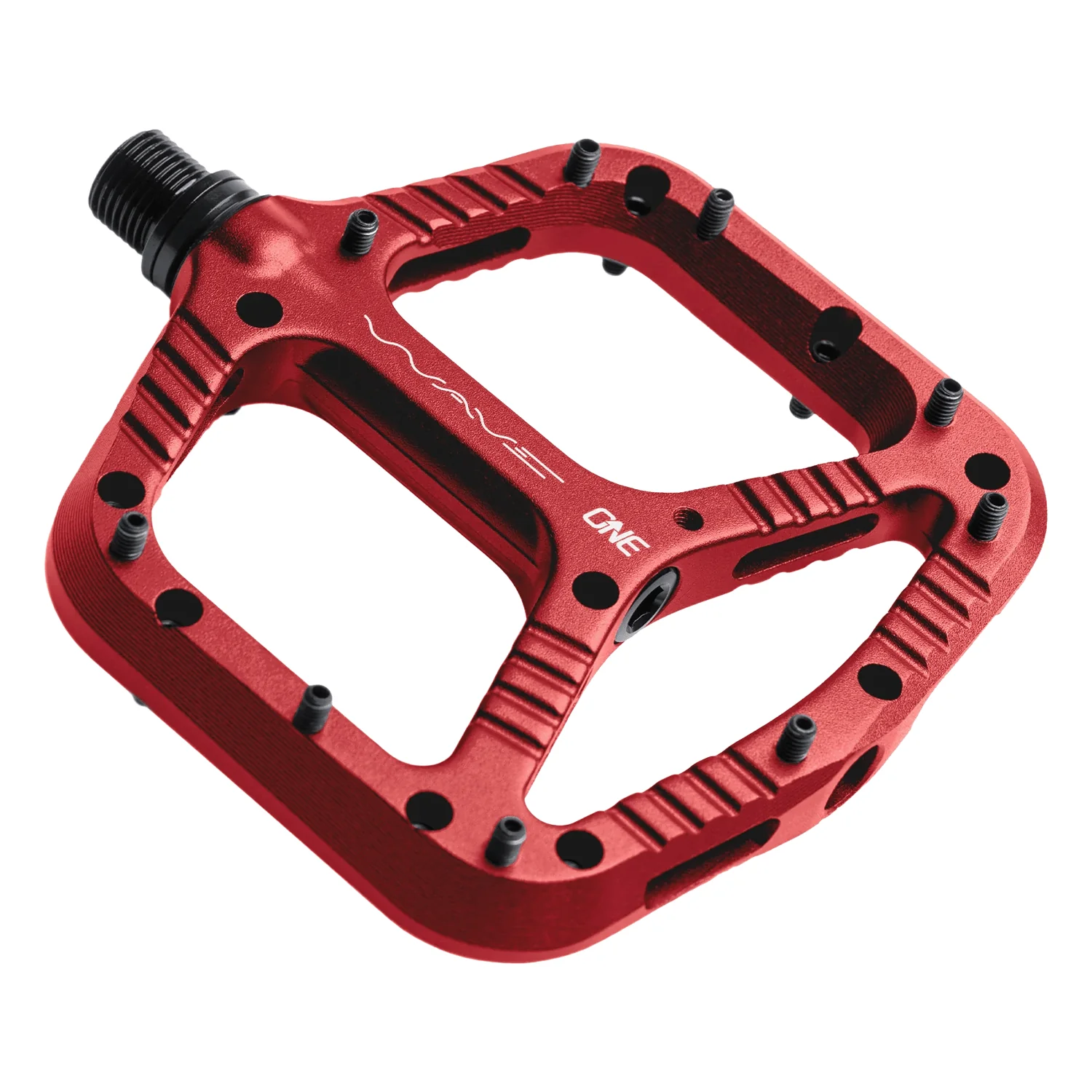

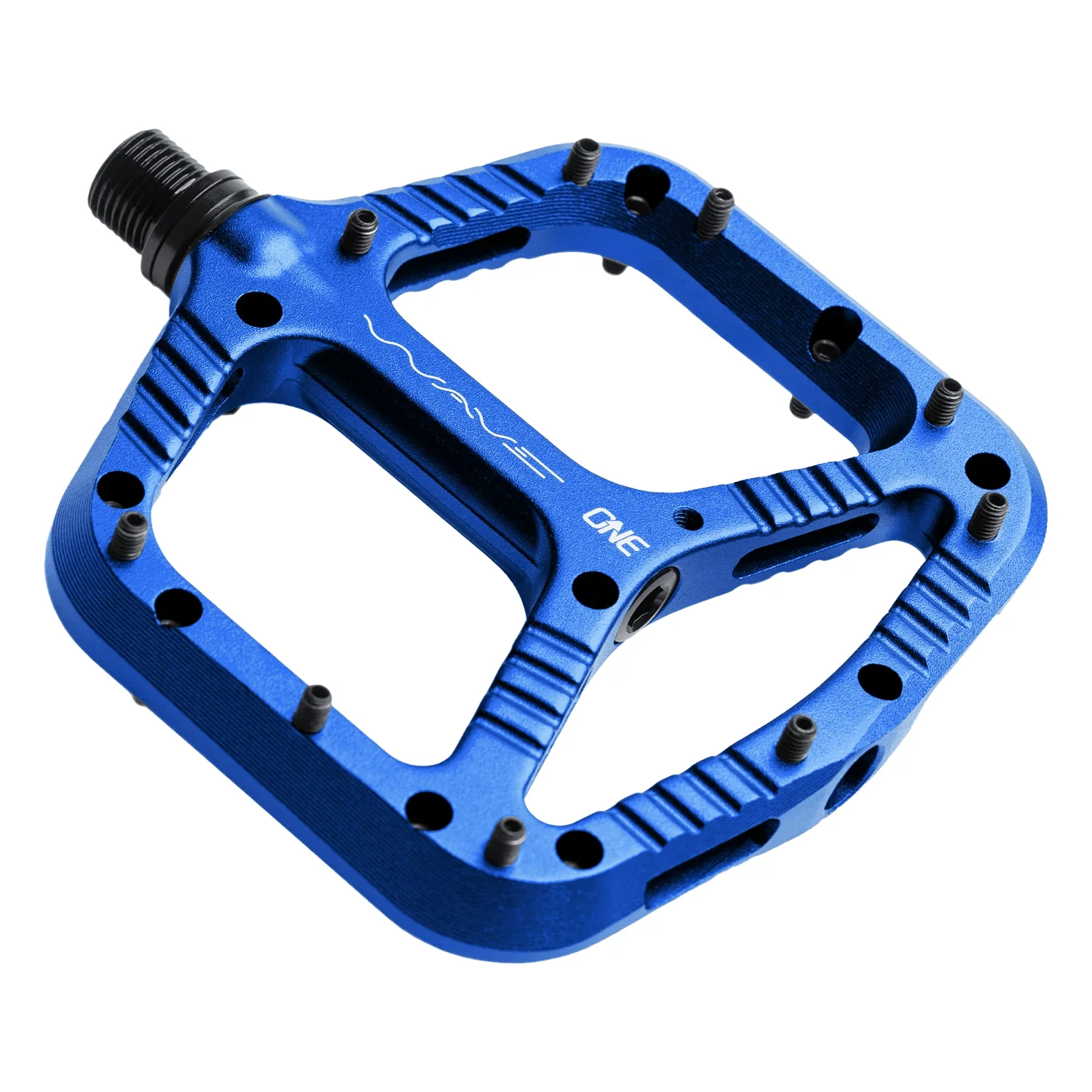

OneUp Wave Pedals

Wave-shaped with intent, this pedal combines concave grip up front with a convex rear slope to support a powerful, heels-down stance. The angled pins align under load for increased traction, while a forged 6061 aluminum body and DH-rated chromoly axle deliver durability without excess weight. At just 355g per pair, the OneUp Wave Pedals offer a refined platform feel for riders who demand control across technical terrain.

• Weight: 355g (Pair)
• Thickness: Axle 14.2mm / Edges 11.5mm
• Size: 107mm x 110mm (W x L)
• Bearing configuration: Inboard igus™ Bushing and 3x outboard cartridge bearings
• Body: Forged and CNC’d 6061 Aluminum Body
• Axle: Chromoly Steel with Black ED coating
• Pins: M4 Hollow Pin 10 x pins per side (self-cleaning hex through hole)
• Convex + Concave = Wave: The front half of the pedal has a concave profile that hugs the ball of your foot for unmatched grip. The back half of the pedal is sloped to promote an aggressive heels-down foot position for more power and control.
• Angled Pins: Because the Wave design naturally encourages your heels to drop, the pins are installed at an angle to be vertical when riding. This leverages the Wave profile and increases grip - without the need for longer pins.
• DH-Rated Axle: The Wave pedal uses a proven axle, bushing and bearing configuration for improved reliability — strong enough for all types of riding.
• What's in the Box:
  - 2x Wave Pedals (1x Left, 1x Right)
  - 9x Installed M4 hollow threaded pins per side (36x pins total)
  - 10x Spare/Uninstalled M4 hollow threaded pins
  - 1x Pedal Bearing Nut Tool
• 1 year manufacturer warranty.

Information provided by manufacturer
